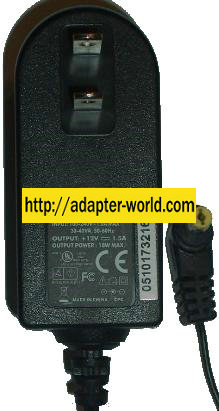

Sunny SYS1298-1812-W2 AC ADAPTER 12V DC 1.5A  2x5.5mm -( ) New 100-240vac SWITCHING POWER SUPPLY

Condition: New   -   Working
Content: One Adapter only

Manufacturer/Brand: DVE WinTerm / ELK / CUI / ITE
Model / SKU: SYS1298-1812-W2

Compatible Model / P/N.: E135856  , Sunny   SYS1298-1812-W2E (You need european converter, SYS1298-1812P-W2 , SYS1298-1812P-W2E , PA-5D, PA5D, PA5, PA5C, PA-5C
SMARTPARTS ADS-18C-12N 12018GPCU , ads-18c-12018gpcu

Input:  100-240Vac ~ 50/60 Hz 0.4A
Output: DC  12V === 1.5A  - ---C---
Amperes / Watts: 30W
Connector:  Straight Round Barrel
Pin Dimension:    2 x  5.5 x  9 mm (IDxODxL)

Safety Approval UL/CUL, TUV, CE, T-Mark, SAA, BABT, C-Tick

Plug type: USA, Europe, Australia, China, Korea, UK
Input Voltage Type: Universal Range
AC Input Voltage: 90~264 Vac
AC Input Frequency: 47~63 Hz
AC Input Current: 0.5A RMS
No. of Outputs: Single O/P
Load Regulation: /-5%
Min. O/P Amper: 0A
Operation Temperature: 0~40 °C
Protection: Short, Over Voltage, Over Current
MTBF: 35 000 Hours
Hold Up Time: 10 ms
Safety: GS/TUV, CB, CE

Weight: 158 grams
Dimension: 75 mm (L), 34 mm (W), 43 mm (H)

To Use With:
Portable DVD Player , Router, Hub , Lcd TV, LCD Digital Frame
SMARTPARTS 5.6" Digital Picture Frame TXDPF5.6
Digital Drums: DD-20, DD-35, DD-55
PSR Series Keyboards: PSR -175, PSR-275, PSR-280, PSR-295, PSR-K1
DGX Series Keyboards: DGX200, DGX-205, DGX-300, DGX-305, DGX-500, DGX-505
Some LCD Small car Monitor to use at home / Digital LCD Frame / have connector 2mm x 5.5mm approx.
Some Compaq external enclosures / Simpletech portable drives Hub and Routers with 2mm x 5.5mm round connector
and more

Manufacturer: SUNNY
Model Number: SYS1298-1812-W2
Part Number: SYS1298-1812L-C
Compatible P/N.:
 Input Voltage: 100-240VAC ~ 50/60Hz 0.27A-0.17A 23-32VA 13W
 Output: 12V === 1.5A - ---C---
Connector: Straight or 90 degree Round Barrel
Pin Dimension: 2 x 5.5 x 9.4 mm approx.

Dimension: 7 x 5 x 2.5 cm approx.
Weight: 170 grams

Special Note:
Some times Part no.   Model no. or serial no. may or may not same but product will be compatible.
It's important to buy the correct power adapter for your device. No Matter you're replacing a defective or lost power supply or simply purchasing one to go with a product that needs power.
